Database Server Implementation Model

Database Setup for TEST in RHEL-6: Oracle DB 12c

2.1      Step1: Pre Installation Configuration.
2.2      Step2: Configuring storage.
2.3      Step3: Preparing for install- Meeting the software requirements.
2.4      Step4: Install required RPMs and configure shell for the Oracle Universal Installer for RHEL 6.2 (x86_64).
Requires

a) Connect to 192.168.150.2 machine (root / redhat).

b) Check Hardware requirements: Check Physical RAM, SWAP space and available space on disk partitions.

root@192.168.150.2 password:

Last login: Mon Oct 15 04:31:18 2012 from 192.168.150.2

[root@DB ~]# grep MemTotal /proc/meminfo

MemTotal: 66093900 kB

[root@DB ~]# grep SwapTotal /proc/meminfo

SwapTotal: 65535992 kB

RAM between 1GB and 2GB then Swap = 1.5 times the size of RAM

RAM between 2GB and 16GB then Swap = equal to the size of RAM

RAM more than 16GB then Swap Size = 16GB

Since my RAM is 2GB, so I have 3GB of Swap Size.

[root@DB ~]# df -h /dev/shm/

Filesystem Size Used Avail Use% Mounted on

tmpfs 24G 272K 24G 1% /dev/shm

c) Check the screen resolution.

[root@DB ~]# xdpyinfo | grep 'dimensions:'

dimensions: 1280x720 pixels (433x244 millimeters)

d) Check the kernel version.

[root@DB ~]# uname -r

2.6.32-220.el6.x86_64

a) Check the disk partitions.

[root@DB ~]# cat /proc/partitions

major minor #blocks name

8 0 433791696896 sda

8 1 524288 sda1

8 2 1024000 sda2

8 3 65536000 sda3

8 4 51200000 sda4

8 5 51200000 sda5

8 6 51200000 sda6

8 7 71305216 sda7

8 16 312475648 sdb

b) Create a single partition of /dev/sdb (an empty SCSI disk with no existing partitions) for the entire disk (808GB +ASM DISK).

[root@DB ~]# fdisk /dev/sdb

Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklabel

Building a new DOS disklabel with disk identifier 0x405546a5.

Changes will remain in memory only, until you decide to write them.

After that, of course, the previous content won't be recoverable.

Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)

WARNING: DOS-compatible mode is deprecated. It's strongly recommended to

switch off the mode (command 'c') and change display units to

sectors (command 'u').

Command (m for help): p

Disk /dev/sdb: 808 GB, 867583393792 bytes

255 heads, 63 sectors/track, 65270 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0x405546a5

Device Boot Start End Blocks Id System

Command (m for help): n

Command action

e extended

p primary partition (1-4)

Partition number (1-4): 4

First cylinder (1-65270, default 1): 1

Last cylinder, +cylinders or +size{K,M,G} (1-65270, default 65270): 65270

Command (m for help): w

The partition table has been altered!

Calling ioctl() to re-read partition table.

Syncing disks.

B1) [root@bcbldb01 ~]# cat /proc/partitions

major minor #blocks name

8 0 104857600 sda

8 1 512000 sda1

8 2 104344576 sda2

8 16 312475648 sdb

8 17 1 sdb1

8 21 20980827 sdb5

8 22 26226081 sdb6

8 23 52436128 sdb7

8 24 52436128 sdb8

8 25 52436128 sdb9

8 26 20980858 sdb10

8 27 20980858 sdb11

8 28 52436128 sdb12

253 0 49745920 dm-0

253 1 18579456 dm-1

253 2 17408000 dm-2

253 3 18608128 dm-3

c) Verify the new partition.

[root@DB ~]# fdisk -l /dev/sdb

Disk /dev/sdb: 320.0 GB, 319975063552 bytes

255 heads, 63 sectors/track, 38901 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0xd3eae4b6

Device Boot Start End Blocks Id System

/dev/sdb1 1 38901 312472251 5 Extended

/dev/sdb5 1 2612 20980827 83 Linux

/dev/sdb6 2613 5877 26226081 83 Linux

/dev/sdb7 5878 12405 52436128+ 83 Linux

/dev/sdb8 12406 18933 52436128+ 83 Linux

/dev/sdb9 18934 25461 52436128+ 83 Linux

/dev/sdb10 25462 28073 20980858+ 83 Linux

/dev/sdb11 28074 30685 20980858+ 83 Linux

/dev/sdb12 30686 37213 52436128+ 83 Linux

d) Create the Filesystem. Use ext3 to create this new filesystem. Other filesystems work just as well, but ext3 offers the fastest recovery time in the event of a system crash. Here also Level the file system.

[root@DB ~]# mkfs.ext3 -L Home /dev/sdb5

[root@DB ~]# blkid | grep Home

/dev/sdb5: LABEL="Home" UUID="7f78f82b-1530-47dc-8061-0ee12d08fc3d" SEC_TYPE="ext2" TYPE="ext3"

[root@DB ~]# mkfs.ext3 -L vol1 /dev/sdb6

[root@DB ~]# blkid | grep vol1

[root@DB ~]# blkid | grep vol2

[root@DB ~]# mkfs.ext3 -L vol2 /dev/sdb7

[root@DB ~]# blkid | grep vol2

[root@DB ~]# mkfs.ext3 -L vol3 /dev/sdb8

[root@DB ~]# blkid | grep vol3

[root@DB ~]# mkfs.ext3 -L vol4 /dev/sdb9

[root@DB ~]# blkid | grep vol4

[root@DB ~]# mkfs.ext3 -L vol5 /dev/sdb10

[root@DB ~]# blkid | grep vol5

[root@DB ~]# mkfs.ext3 -L vol6 /dev/sdb11

[root@DB ~]# blkid | grep vol6

[root@DB ~]# mkfs.ext3 -L vol6 /dev/sdb12

[root@DB ~]# blkid | grep vol7

e) Check the disk partitions.

[root@DB ~]# fdisk -l

Disk /dev/sda: 107.4 GB, 107374182400 bytes

255 heads, 63 sectors/track, 13054 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0x00055044

Device Boot Start End Blocks Id System

/dev/sda1 * 1 64 512000 83 Linux

Partition 1 does not end on cylinder boundary.

/dev/sda2 64 13055 104344576 8e Linux LVM

Disk /dev/sdb: 320.0 GB, 319975063552 bytes

255 heads, 63 sectors/track, 38901 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0xd3eae4b6

Device Boot Start End Blocks Id System

/dev/sdb1 1 38901 312472251 5 Extended

/dev/sdb5 1 2612 20980827 83 Linux

/dev/sdb6 2613 5877 26226081 83 Linux

/dev/sdb7 5878 12405 52436128+ 83 Linux

/dev/sdb8 12406 18933 52436128+ 83 Linux

/dev/sdb9 18934 25461 52436128+ 83 Linux

/dev/sdb10 25462 28073 20980858+ 83 Linux

/dev/sdb11 28074 30685 20980858+ 83 Linux

/dev/sdb12 30686 37213 52436128+ 83 Linux

Disk /dev/mapper/vg_bcbldb01-lv_root: 50.9 GB, 50939822080 bytes

255 heads, 63 sectors/track, 6193 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0x00000000

Disk /dev/mapper/vg_bcbldb01-lv_root doesn't contain a valid partition table

Disk /dev/mapper/vg_bcbldb01-lv_swap: 19.0 GB, 19025362944 bytes

255 heads, 63 sectors/track, 2313 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0x00000000

Disk /dev/mapper/vg_bcbldb01-lv_swap doesn't contain a valid partition table

Disk /dev/mapper/vg_bcbldb01-lv_tmp: 17.8 GB, 17825792000 bytes

255 heads, 63 sectors/track, 2167 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0x00000000

Disk /dev/mapper/vg_bcbldb01-lv_tmp doesn't contain a valid partition table

Disk /dev/mapper/vg_bcbldb01-lv_home: 19.1 GB, 19054723072 bytes

255 heads, 63 sectors/track, 2316 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk identifier: 0x00000000

Disk /dev/mapper/vg_bcbldb01-lv_home doesn't contain a valid partition table

f) Create the mount point. We have already created the /u01 directory for Oracle installation files and /u02,/u03,/u04,/u05,/u06,/u07 directory for SpreadingDatafile,cdupm,udump,bdump .

g) [root@DB ~]# mkdir /u01

[root@DB ~]# mkdir /u02

[root@DB ~]# mkdir /u03

[root@DB ~]# mkdir /u04

[root@DB ~]# mkdir /u05

[root@DB ~]# mkdir /u06

[root@DB ~]# mkdir /u07

[root@DB ~]# mkdir /u08

h) Add dev/sdb5 /u01 ext3 defaults 1 1 ,/dev/sdb6 /u02 ext3 defaults 1 1,/dev/sdb7 /u03 ext3 defaults 1 1, /dev/sdb8 /u04 ext3 defaults 1 1,/dev/sdb9 /u05 ext3 defaults 1 1,/dev/sdb10 /u06 ext3 defaults 1 1,/dev/sdb11 /u07 ext3 defaults 1 1,/dev/sdb12 /u08 ext3 defaults 1 1to the New Filesystem to /etc/fstab.

So that the new filesystem will be mounted automatically when the system boots.

[root@DB ~]# vim /etc/fstab

# /etc/fstab

# Created by anaconda on Wed Oct 23 16:48:21 2013

# Accessible filesystems, by reference, are maintained under '/dev/disk'

# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info

/dev/mapper/vg_bcbldb01-lv_root / ext4 defaults 1 1

UUID=1ec6ad35-2be7-4f3b-8235-fe7f01b0439c /boot ext4 defaults 1 2

/dev/mapper/vg_bcbldb01-lv_home /home ext4 defaults 1 2

/dev/mapper/vg_bcbldb01-lv_tmp /tmp ext4 defaults 1 2

/dev/mapper/vg_bcbldb01-lv_swap swap swap defaults 0 0

tmpfs /dev/shm tmpfs defaults 0 0

devpts /dev/pts devpts gid=5,mode=620 0 0

sysfs /sys sysfs defaults 0 0

proc /proc proc defaults 0 0

/dev/sdb5 /u01 ext3 defaults 1 1

/dev/sdb6 /u02 ext3 defaults 1 1

/dev/sdb7 /u03 ext3 defaults 1 1

/dev/sdb8 /u04 ext3 defaults 1 1

/dev/sdb9 /u05 ext3 defaults 1 1

/dev/sdb10 /u06 ext3 defaults 1 1

/dev/sdb11 /u07 ext3 defaults 1 1

/dev/sdb12 /u08 ext3 defaults 1 1

i) Mount the new Filesystem

[root@DB ~]# mount /u01

[root@DB ~]# mount /u02

[root@DB ~]# mount /u03

[root@DB ~]# mount /u04

[root@DB ~]# mount /u05

[root@DB ~]# mount /u06

[root@DB ~]# mount /u07

[root@DB ~]# mount /u08

a) Add machine name and IP address at /etc/hosts.

[root@DB ~]# vi /etc/hosts

192.168.150.2 bcbldb01 bcbldb01.spftl.com

127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4

::1 localhost localhost.localdomain localhost6 localhost6.localdomain6

b) Add Linux Kernel Parameters to /etc/sysctl.conf.

[root@DB ~]# vi /etc/sysctl.conf

# Oracle settings

fs.aio-max-nr = 1048576

fs.file-max = 6815744

kernel.shmall = 4097152

kernel.shmmni = 4096

kernel.sem = 250 32000 100 128

net.ipv4.ip_local_port_range = 9000 65500

net.core.rmem_default = 262144

net.core.rmem_max = 4194304

net.core.wmem_default = 262144

net.core.wmem_max = 1048586

net.ipv4.tcp_wmem = 262144 262144 262144

net.ipv4.tcp_rmem = 4194304 4194304 4194304

kernel.shmmax = 4294967295

Note: You may find the parameters mentioned above already present in the /etc/sysctl.conf file. If they have a value lower then mentioned above then make sure you change it, but if they have a larger value then perhaps it’s safe to leave it as is.

c) Make the kernel parameters changes effective immediately.

[root@DB ~]# /sbin/sysctl -p

d) Verify the parameters: # /sbin/sysctl -a | grep name_of_kernel_parameter -- e.g. shmall

e) Setup User as Oracle owner and the groups for installing and managing Oracle.

[root@DB ~]# /usr/sbin/groupadd oinstall

[root@DB ~]# /usr/sbin/groupadd dba

[root@DB ~]# /usr/sbin/groupadd oper

[root@DB ~]# /usr/sbin/useradd -g oinstall -G dba,oper oracle

[root@DB ~]# /usr/bin/passwd oracle

If user exist

/usr/sbin/usermod -g oinstall -G dba,oper oracle

f) Create directories where the Oracle Software and database will be installed.

[root@DB ~]# mkdir -p /u01/app/oracle/product/12.1.0/db_1/

[root@DB ~]# chown -R oracle:oinstall /u01

[root@DB ~]# chmod -R 0775 /u01

[root@DB ~]# chown -R oracle:oinstall /u02

[root@DB ~]# chmod -R 0775 /u02

[root@DB ~]# chown -R oracle:oinstall /u03

[root@DB ~]# chmod -R 0775 /u03

[root@DB ~]# chown -R oracle:oinstall /u04

[root@DB ~]# chmod -R 0775 /u04

[root@DB ~]# chown -R oracle:oinstall /u05

[root@DB ~]# chmod -R 0775 /u05

[root@DB ~]# chown -R oracle:oinstall /u06

[root@DB ~]# chmod -R 0775 /u06

[root@DB ~]# chown -R oracle:oinstall /u07

[root@DB ~]# chmod -R 0775 /u07

[root@DB ~]# chown -R oracle:oinstall /u08

[root@DB ~]# chmod -R 0775 /u08

[root@DB ~]# chown -R oracle:dba /u02

[root@DB ~]# chmod -R 0775 /u02

[root@DB ~]# chown -R oracle:dba /u03

[root@DB ~]# chmod -R 0775 /u03

[root@DB ~]# chown -R oracle:dba /u04

[root@DB ~]# chmod -R 0775 /u04

[root@DB ~]# chown -R oracle:dba /u05

[root@DB ~]# chmod -R 0775 /u05

[root@DB ~]# chown -R oracle:dba /u06

chmod -R 0775 /u06

[root@DB ~]# chown -R oracle:dba /u07

[root@DB ~]# chmod -R 0775 /u07

[root@DB ~]# chown -R oracle:dba /u08

[root@DB ~]# chmod -R 0775 /u08

g) Set the shell limits for the le vi /etc/security/limits.conf

oracle soft nproc 2047

oracle hard nproc 16384

oracle soft nofile 1024

oracle hard nofile 65536

Note- Where "nproc" is the maximum number of processes available to the user and "nofile" is the number of open file descriptors.

h) Add pam_limits.so for executing session at /etc/pam.d/login

[root@DB ~]# vi /etc/pam.d/login

session required pam_limits.so

i) Disable secure Linux by editing the /etc/selinux/config file

[root@DB ~]# vi /etc/selinux/config

# This file controls the state of SELinux on the system.

# SELINUX= can take one of these three values:

# enforcing - SELinux security policy is enforced.

# permissive - SELinux prints warnings instead of enforcing.

# disabled - No SELinux policy is loaded.

SELINUX=disabled

# SELINUXTYPE= can take one of these two values:

# targeted - Targeted processes are protected,

# mls - Multi Level Security protection.

SELINUXTYPE=targeted

a) Create a file at /root/BCBLBD directory as req-rpm.txt with the list of the following RPMs:

binutils-2.17.50.0.6

compat-libstdc++-33-3.2.3

compat-libstdc++-33-3.2.3 (32 bit)

elfutils-libelf-0.125

elfutils-libelf-devel-0.125

gcc-4.1.2

gcc-c++-4.1.2

glibc-2.5-24

glibc-2.5-24 (32 bit)

glibc-common-2.5

glibc-devel-2.5

glibc-devel-2.5 (32 bit)

glibc-headers-2.5

pdksh-20060214

libaio-0.3.106

libaio-0.3.106 (32 bit)

libaio-devel-0.3.106

libaio-devel-0.3.106 (32 bit)

libgcc-4.1.2

libgcc-4.1.2 (32 bit)

libstdc++-4.1.2

libstdc++-4.1.2 (32 bit)

libstdc++-devel 4.1.2

make-3.81

sysstat-7.0.2

[root@silent-oracle ~]# rpm -qa | grep binutils-

binutils-devel-2.20.51.0.2-5.11.el6.x86_64

binutils-2.20.51.0.2-5.11.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep compat-libstdc++-

compat-libstdc++-296-2.96-144.el6.i686

compat-libstdc++-33-3.2.3-69.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep elfutils-libelf

elfutils-libelf-devel-0.148-1.el6.x86_64

elfutils-libelf-0.148-1.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep gcc-

compat-gcc-34-3.4.6-19.el6.x86_64

gcc-gnat-4.4.4-13.el6.x86_64

gcc-4.4.4-13.el6.x86_64

libgcc-4.4.4-13.el6.i686

gcc-objc++-4.4.4-13.el6.x86_64

libgcc-4.4.4-13.el6.x86_64

gcc-objc-4.4.4-13.el6.x86_64

gcc-java-4.4.4-13.el6.x86_64

compat-gcc-34-g77-3.4.6-19.el6.x86_64

gcc-c++-4.4.4-13.el6.x86_64

gcc-gfortran-4.4.4-13.el6.x86_64

compat-gcc-34-c++-3.4.6-19.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep glibc

glibc-headers-2.12-1.7.el6.x86_64

compat-glibc-headers-2.5-46.2.x86_64

glibc-2.12-1.7.el6.x86_64

glibc-devel-2.12-1.7.el6.x86_64

glibc-2.12-1.7.el6.i686

glibc-utils-2.12-1.7.el6.x86_64

glibc-common-2.12-1.7.el6.x86_64

compat-glibc-2.5-46.2.x86_64

[root@silent-oracle ~]# rpm -qa | grep pdksh-

[root@silent-oracle ~]# rpm -qa | grep libaio

libaio-devel-0.3.107-10.el6.x86_64

libaio-0.3.107-10.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep libgcc

libgcc-4.4.4-13.el6.i686

libgcc-4.4.4-13.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep libstdc++-

compat-libstdc++-296-2.96-144.el6.i686

libstdc++-devel-4.4.4-13.el6.x86_64

compat-libstdc++-33-3.2.3-69.el6.x86_64

libstdc++-docs-4.4.4-13.el6.x86_64

libstdc++-4.4.4-13.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep make

automake-1.11.1-1.2.el6.noarch

make-3.81-19.el6.x86_64

[root@silent-oracle ~]# rpm -qa | grep sysstat-

sysstat-9.0.4-11.el6.x86_64

[root@silent-oracle ~]#

Note- Be sure to correct the typographical error for package “libstdc++-devel 4.1.2”, replaces it with “libstdc++-devel-4.1.2”. The optional Grid Infrastructure software requires the 64-bit version of compat-libcap1.

b) Check the file req-rpm.txt

[root@DB ~]# cd /root/BCBLBD/

[root@DB BCBLBD]# ls -l

total 4

drwxr-xr-x 3 root root 4096 Oct 16 04:21 req-rpm.txt

c) Install the 64-bit packages and their dependencies.

[root@DB BCBLBD]# yum install `grep -v '32 bit' req-rpm.txt | sed 's/-[^-]*$//'` compat-libcap1

d) Install ODBC environment.

[root@DB BCBLBD]# yum install unixODBC unixODBC-devel unixODBC.i686

e) Check whether the required packages are installed with rpm -qa | grep <package_name>

[root@DB BCBLBD]# cd

[root@DB ~]# rpm –qa | grep binutils

binutils-2.20.51.0.2-5.28.el6.x86_64

f) Allow the user oracle to use X server.

[root@DB ~]# xhost +SI:localuser:oracle

g) Switch to the user oracle.

[root@DB ~]# su - oracle

h) Check which shell is being used by the user Oracle.

[oracle@DB ~]$ echo $SHELL

/bin/bash

i) Add the bash_profile of the oracle user is as below:

[oracle@DB ~]$ vi /home/oracle/.bash_profile

# .bash_profile

# Get the aliases and functions

if [ -f ~/.bashrc ]; then

. ~/.bashrc

if [ $USER = "oracle" ]; then

if [ $SHELL = "/bin/ksh" ]; then

ulimit -p 16384

ulimit -n 65536

else

ulimit -u 16384 -n 65536

# Oracle settings

TMP=/tmp; export TMP

TMPDIR=$TMP; export TMPDIR

# If /tmp doesn't have 1G space free then you can workaround it by

# pointing the variables TMP AND TMPDIR to a location where you have

# sufficient space.

ORACLE_HOSTNAME=bcbldb01.spftl.com; export ORACLE_HOSTNAME

ORACLE_BASE=/u01/app/oracle; export ORACLE_BASE

ORACLE_HOME=$ORACLE_BASE/product/12.1.0/db_1; export ORACLE_HOME

ORACLE_SID=rasheldb; export ORACLE_SID

ORACLE_TERM=xterm; export ORACLE_TERM

PATH=$ORACLE_HOME/bin:/usr/sbin:$PATH; export PATH

LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib;

export LD_LIBRARY_PATH

CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib;

export CLASSPATH

# User specific environment and startup programs

PATH=$PATH:$HOME/bin

export PATH

umask 022

j) Run the following command to make these changes effective in the current session of user oracle:

[oracle@DB ~]$ source ~/.bash_profile

Step 10) Copy the Oracle software in /u01 and Unzip the files

# cd /u01/Software

# unzip linuxamd64_12c_database_1of2.zip

# unzip linuxamd64_12c_database_2of2.zip

# unzip linuxamd64_12c_database_1of2.zip

# unzip linuxamd64_12c_database_2of2.zip

---Configuring XTERM:

# Install the needed Package of Xterm using following command along with depended RPM

§ libc.so.6(GLIBC_2.4)(64bit)

§ libfontconfig.so.1()(64bit)

§ libICE.so.6()(64bit)

§ libncurses.so.5()(64bit)

§ libtinfo.so.5()(64bit)

§ libutempter.so.0()(64bit)

§ libX11.so.6()(64bit)

§ libXaw.so.7()(64bit)

§ libXft.so.2()(64bit)

§ libXmu.so.6()(64bit)

§ libXt.so.6()(64bit)

[root@bcbldb02 ~]# rpm -ivh xterm-253-1.el6.x86_64.rpm

---Set the Display:

[root@bcbldb02 ~]# set | grep DISPLAY

[root@bcbldb02 ~]# export DISPLAY=192.16.61.100:0.0

[root@bcbldb02 ~]# xdpyinfo | grep 'dimensions:'

dimensions: 1024x768 pixels (271x203 millimeters)

[root@bcbldb02 ~]# export DISPLAY=192.168.150.2:0.0

[root@bcbldb02 ~]# xdpyinfo | grep 'dimensions:'
[root@bcbldb02 ~]su - oracle
[oracle@bcbldb02 ~]cd /u01/Software

$ cd database

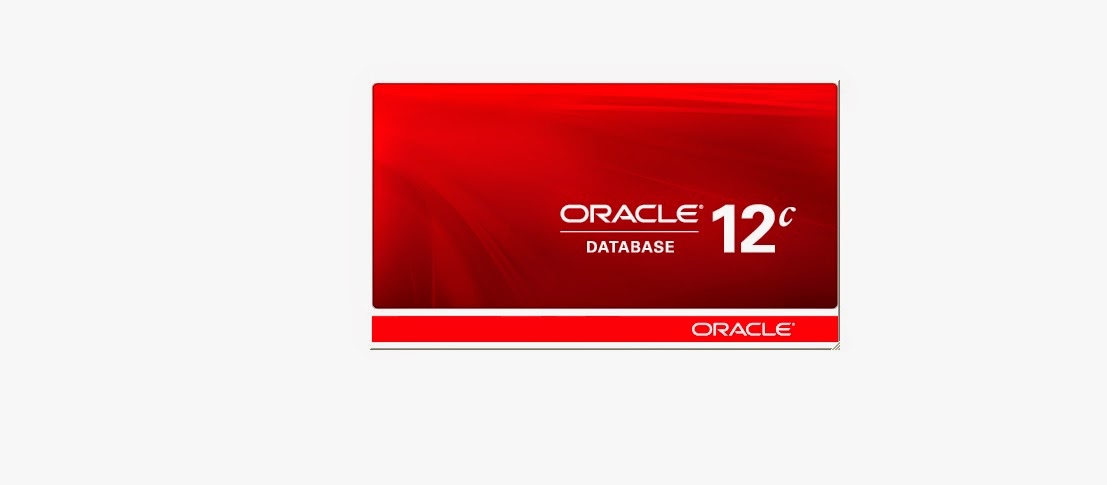

$ ./runInstaller

ROAD-2-ORACLE

Wednesday, 13 August 2014

Oracle 12c on Red Hat Linux 6.X Implementation model document

No comments:
